2023TrialMultiple choice
Q11
1 mark
Question

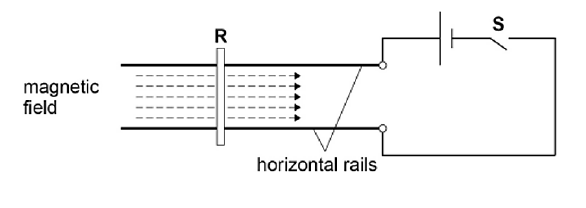

A short copper rod is placed on a pair of thick horizontal parallel copper rails. A horizontal magnetic field exists in the direction shown by the dashed arrows. The diagram shows the apparatus when viewed from directly above.
When switch is closed, will tend to:
(A) Lift upwards away from the rails.
(B) Move to the left.
(C) Move to the right.
(D) Be pressed downwards onto the rails.

Syllabus alignment
Module 6 · Electromagnetism
- The Motor EffectDetermine the size and direction of force on a current-carrying conductor in a uniform magnetic field.
