2022TrialShort answer

Q15 (c) (i)

2 marks

Question

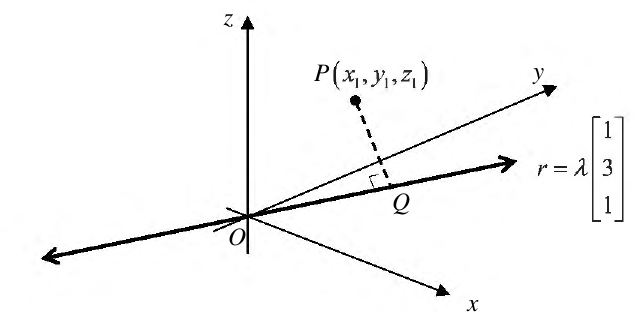

The line has vector equation
$\vec r=\lambda\begin{bmatrix}1\\3\\1\end{bmatrix}.$
For $P(x_1,y_1,z_1)$ , the point $Q$ on the line is such that $PQ$ is a minimum. Using vector projection methods, show that
$\overrightarrow{OQ}=\frac{x_1+3y_1+z_1}{11}\begin{bmatrix}1\\3\\1\end{bmatrix}.$

Try the question before revealing the answer.

Solution

$\overrightarrow{OQ}=\operatorname{proj}_{\mathbf b}\overrightarrow{OP}$

$\overrightarrow{OP}=\begin{bmatrix}x_1\\y_1\\z_1\end{bmatrix},\qquad \mathbf b=\begin{bmatrix}1\\3\\1\end{bmatrix}\text{ which is a vector on }r$

$\overrightarrow{OQ}=\operatorname{proj}_{\mathbf b}\overrightarrow{OP}$
$=\frac{\overrightarrow{OP}\cdot\mathbf b}{\mathbf b\cdot\mathbf b}\times\mathbf b$
$=\frac{(1)(x_1)+(3)(y_1)+(1)(z_1)}{1^2+3^2+1^2}\begin{bmatrix}1\\3\\1\end{bmatrix}$
$=\frac{x_1+3y_1+z_1}{11}\begin{bmatrix}1\\3\\1\end{bmatrix}$

1 – correct projection formula and application
1 – correct answer

Supplied marking guidance · human reviewed

Compare this with your working, not only your final sentence.

Syllabus alignment

Vectors

Vectors and vector equations of linesUse coordinates and vector equations for curves, lines, line segments and spheres in two and three dimensions.
Further operations with three-dimensional vectorsUse vector magnitude, unit vectors and scalar products to solve problems and prove geometric results.
