2023HSCShort answer

Q12 (e)

4 marks

Question

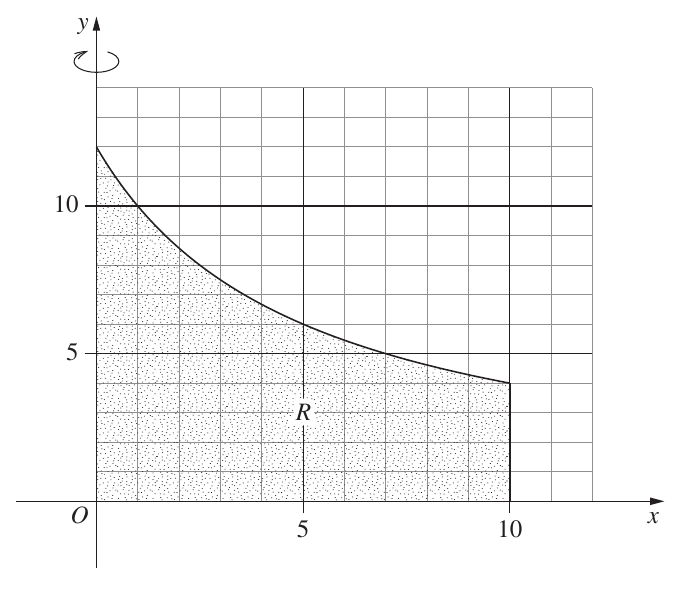

The region, $R$ , bounded by the hyperbola

y=\frac{60}{x+5},

the line $x=10$ and the coordinate axes is shown. [Diagram of the shaded region and rotation about the $y$ -axis.]

Find the volume of the solid of revolution formed when the region $R$ is rotated about the $y$ -axis. Leave your answer in exact form.

Try the question before revealing the answer.

Solution

Criteria	Marks
Provides correct solution	4
Obtains the volume formed by revolving the hyperbola about the $y$ -axis, or equivalent merit	3
Obtains correct integral expression for the volume formed by revolving the hyperbola about the $y$ -axis, or equivalent merit	2
Writes $x$ in terms of $y$ , or recognises that the volume is the sum of two simpler volumes, or equivalent merit	1

Sample answer:

The total volume is the sum of the volume when the given hyperbola is revolved about the $y$ -axis, $V_1$ , and the volume of a cylinder, $V_2$ .

\begin{aligned} V_1&=\pi\int_4^{12}x^2\,dy,\qquad y=\frac{60}{x+5}\\ x+5&=\frac{60}{y}\\ x&=\frac{60}{y}-5\\ V_1&=\pi\int_4^{12}\left(\frac{60}{y}-5\right)^2dy\\ &=\pi\int_4^{12}\left(\frac{3600}{y^2}-\frac{600}{y}+25\right)dy\\ &=\pi\left[-\frac{3600}{y}-600\ln y+25y\right]_4^{12}\\ &=\pi(800-600\ln3) \end{aligned}

\begin{aligned} V_2&=\pi\times10^2\times4=400\pi\\ \text{Total}&=V_1+V_2\\ \therefore\quad\text{Total}&=\pi(1200-600\ln3)\text{ units}^3 \end{aligned}

Supplied marking guidance · human reviewed

Compare this with your working, not only your final sentence.

Syllabus alignment

Calculus

Applications of CalculusApply calculus to areas between curves, volumes of solids of revolution and differential equation models.
