2023TrialShort answer

Q25

3 marks

Question

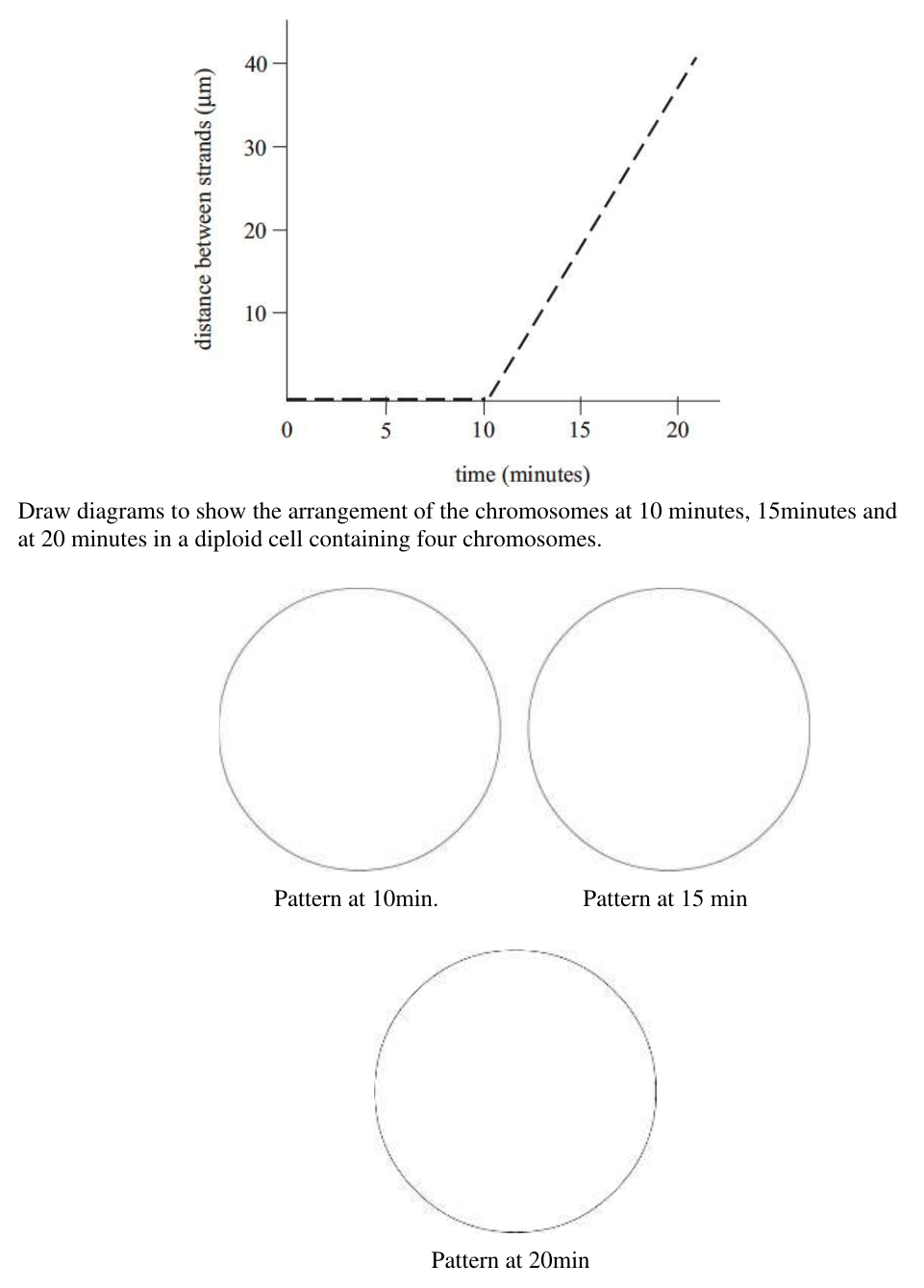

The following graph, which shows the distance between the sister chromatids of a replicated chromosome during a mitotic cell division: Draw diagrams to show the arrangement of the chromosomes at 10 minutes, 15minutes and at 20 minutes in a diploid cell containing four chromosomes. Pattern at 10min. Pattern at 15 min Pattern at 20min

Try the question before revealing the answer.

Solution

Criteria	Marks
Cells have the correct chromosome number.<br>Sister chromatids are connected and aligned appropriately for the cell-division stage.<br>Distance is proportional to the graph data.	3

Deduct one mark for any missing point.

Sample answer:

10 mins
(0 μm distance)
[Hand-drawn diagram: a cell containing four X-shaped chromosomes aligned vertically.]
Metaphase

15 mins
(20 μm distance)
[Hand-drawn diagram: a cell containing four separated chromosome groups moving toward opposite poles.]
Early Anaphase

20 mins
(40 μm distance)
[Hand-drawn diagram: a cell containing separated chromosome groups near opposite poles.]
Late anaphase

Supplied marking guidance · human reviewed

Compare this with your working, not only your final sentence.

Syllabus alignment

Module 5 · Heredity

Cell ReplicationModel mitosis, meiosis and DNA replication using nucleotide pairing and bonding.
Cell ReplicationAssess how cell-replication processes affect continuity of species.
